HP15K |
|
| Product name：HP15K |

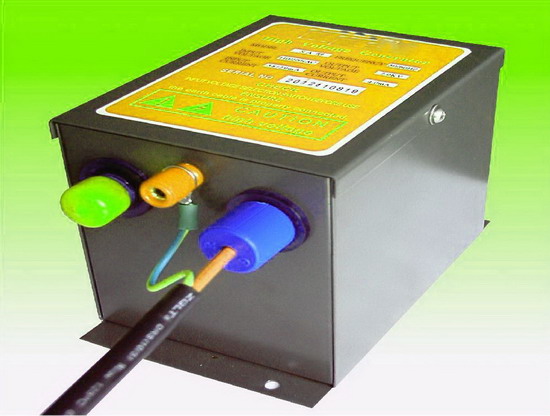

| Item：15KV POWER SUPPLY |
| Details： |
This big voltage power supply has good tempreture control function,it can work continuously for 7 days.Good balance within 10V.
I t can work with 4 static bars at a time.
The static bar can be supplied with air or without air.
The length can be make according to your needs from 100mm to 1500mm.
Power supply techinical specifications:
|
Input voltage
|
220V AC/50Hz
|
|
Rate
|
75W MAX
|
|
Current
|
<8.5mA
|
|
Output voltage
|
1.5kv AC
|
|
Working distance
|
20-200mm(adjustable)
|
|
Dimension
|
172*173*175mm
|
|
Weight
|
8kg
|
Static bar specifications:
|
Ion Generation
|
static bar
|
|
Input voltage
|
1.5kv 75w
|
|
Working distance
|
20-200mm(adjustable)
|
|
Dimension
|
55mm*100-1000mm
|
|
Bar Material
|
PVC ,aluminum alloy
|
|
Emitter material
|
Copper nickel alloy
|
|
Balance
|
Within 50V
|
|
Air supply
|
CDA(clean dry compressed air)
|
|
Air pressure
|
50psi(best);90psi(biggest)
|
|
Air pipe size
|
8mm
|
|
Allowable temperature
|
15～45℃
|
|
Allowable humidity
|
30～60%RH（No drops）
|
|
HV cable
|
2 m
|
|
Ozone level
|
<0.05 ppm
|
|
Certification
|
CE;CSA;UL
|
|
 |
