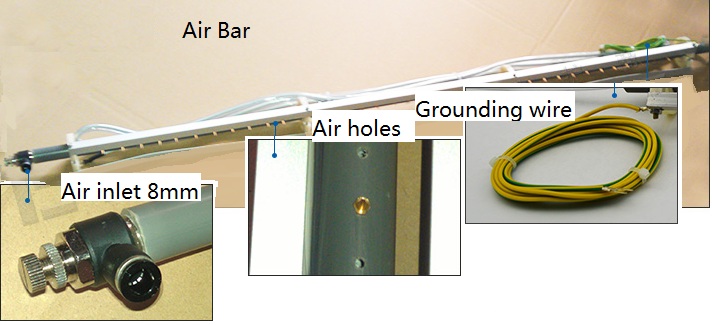

The shell is made of aluminium , which is durable and compact. Built-in big volume of air pipe, efficiently, and quickly eliminate static electricity. It can be used in printing, plastic machining, winding, packaging and other industries.
Total length is available from 10mm to 3000mm.
Technical Data:
|
Ion Generation
|
static bar
|
|
Input voltage
|
1.5kv 75w
|
|
Working distance
|
20-200mm(adjustable)
|
|
Dimension
|
55mm*100-1000mm
|
|
Bar Material
|
PVC ,aluminum alloy
|
|
Emitter material
|
Copper nickel alloy
|
|
Balance
|
Within 50V
|
|
Air supply
|
CDA(clean dry compressed air)
|
|
Air pressure
|
50psi(best);90psi(biggest)
|
|
Air pipe size
|
8mm
|
|
Allowable temperature
|
15～45℃
|
|
Allowable humidity
|
30～60%RH（No drops）
|
|
HV cable
|
2 m
|
|
Ozone level
|
<0.05 ppm
|
|
Certification
|
CE;CSA;UL
|

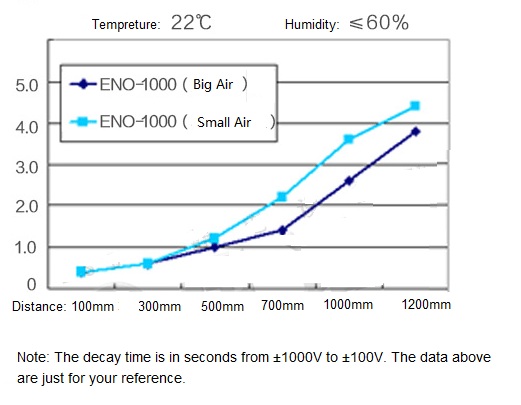

Test Result:
