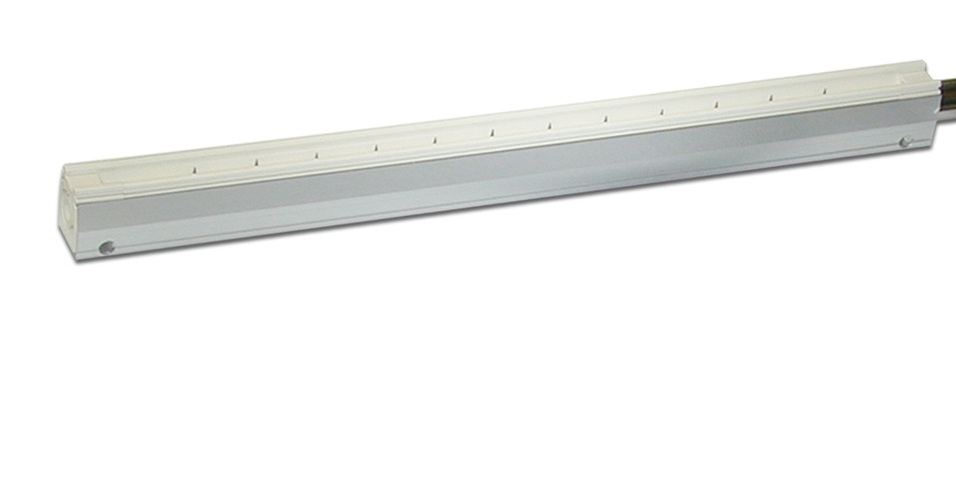

STATIC BAR |
|
|
| Product name：STATIC BAR |
| Item：SBH |
| Details： |
The compact shape enables this model to be installed practically anywhere. It has also been designed for low air consumption. The powerful performance of the bar provides very fast decay times and effective ionisation. Shockless safety design.CE approved.
Main Features:
It is shockless static neutralizing bar, and is easily maintained. The individual emitter in the static bar is coupled capacitively to high voltage. This means that when the operator accidentally touches the bar, he will not get an electric chock. Even if heavy fouling occurs and several of the pins are short circuited, the bar will continue to function normally.
-
Balance: <±100V
-
Effective distance: 20-50mm
-
Decay time: 0.1s @ 20mm
-
Emitter voltage: 7000 V AC / 50Hz
The total length of the bar can be made according to your order, it can help to eliminate static during packing and printing process.
Compact and smart size, especially suitable for installation on printing machines.Working similar to SIMCO R50 blue bar. |
 |
